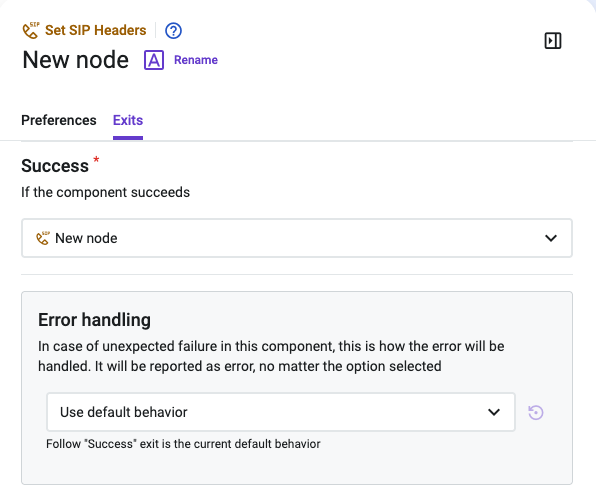

Exits

This component only has one possible exit which can be an existing step or one created from scratch.

Error handling

You can use the “Error Handling” section to define the behavior for unexpected failure during the execution of a component. For more information on this section, please refer to the "Error handling" documentation.

📘

Notes

The Set SIP Headers Component is currently in Preview and will only be applicable on Ascend Connect calls when after the component, the call is forwarded from a Forward to External Number Component.

📘

Note

• The Set SIP Headers only be applicable on calls forwarded on studio from a Forward to External Number Component.
• UUI can always be set but will only be applied on calls sent from Bring Your Own Carrier (BYOC) numbers and not for Public Switched Telephone Network (PSTN) numbers.
• The UUI will not be applied on agent transferred calls, on forward to agent external devices, on Make outbound call component or callbacks.
• The data’s maximum length is 256 bytes.
• The UUI data will be encoded according to RFC 7433.
