Flow Statuses and Versions

Four main steps compose the lifecycle of a flow:

  1. Creating a flow.
  2. Saving and validating a flow.
  3. Publishing a flow.
  4. Assigning a published flow to a number.

A flow can have several versions, allowing you to keep track of any changes over time. Each version can have only one of the following statuses:

  • Draft
  • Published
  • Archived

📘

Note

Only one version per flow can have the “draft” or “published” status.

Draft

Creating a draft

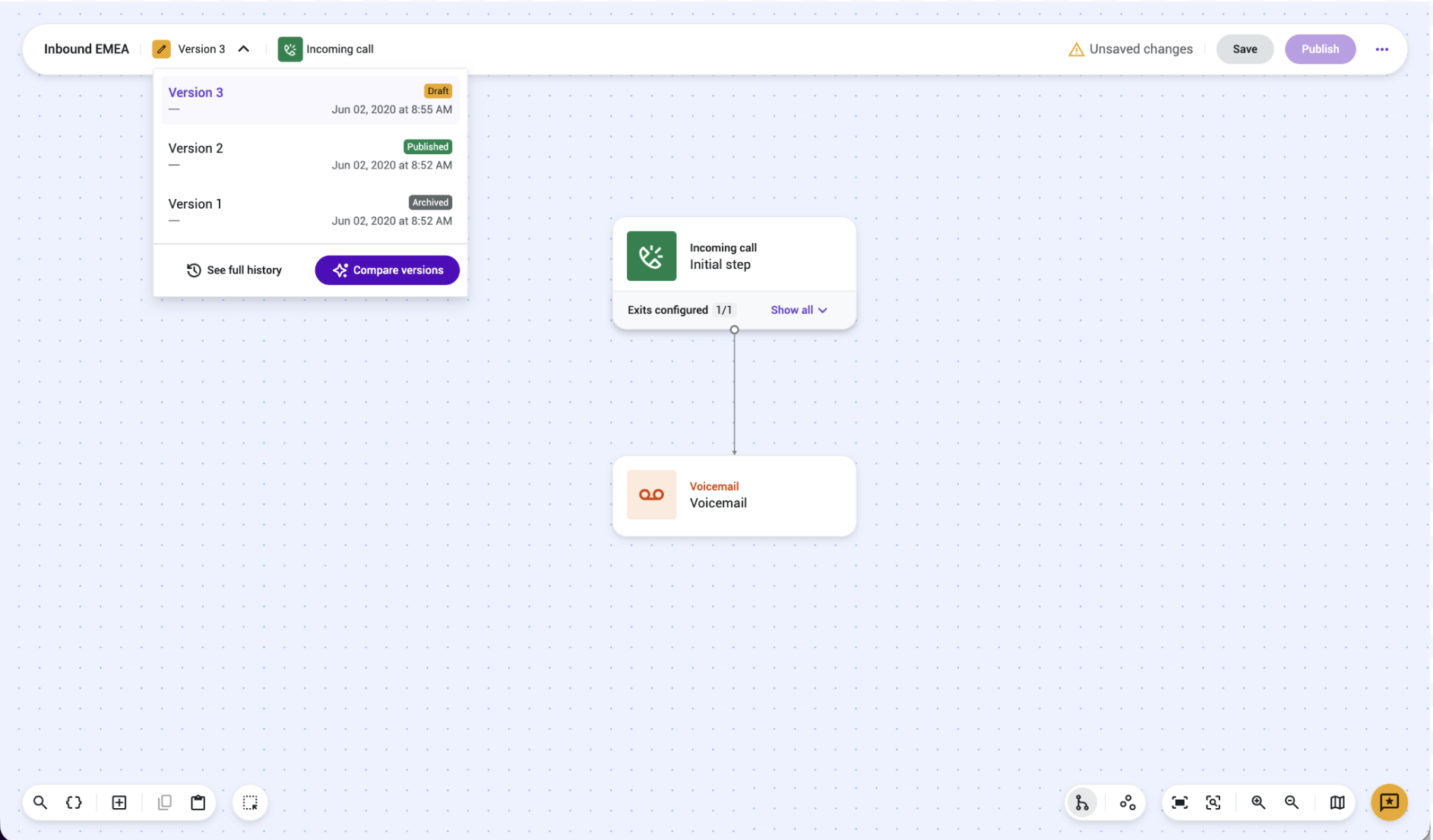

15011501

When you create a flow from scratch, you will immediately start working on a draft. You can only build or make changes to a flow if it’s in a version with the draft status. No calls can be made or directed to a version with this status.

Saving and validating a draft

15011501

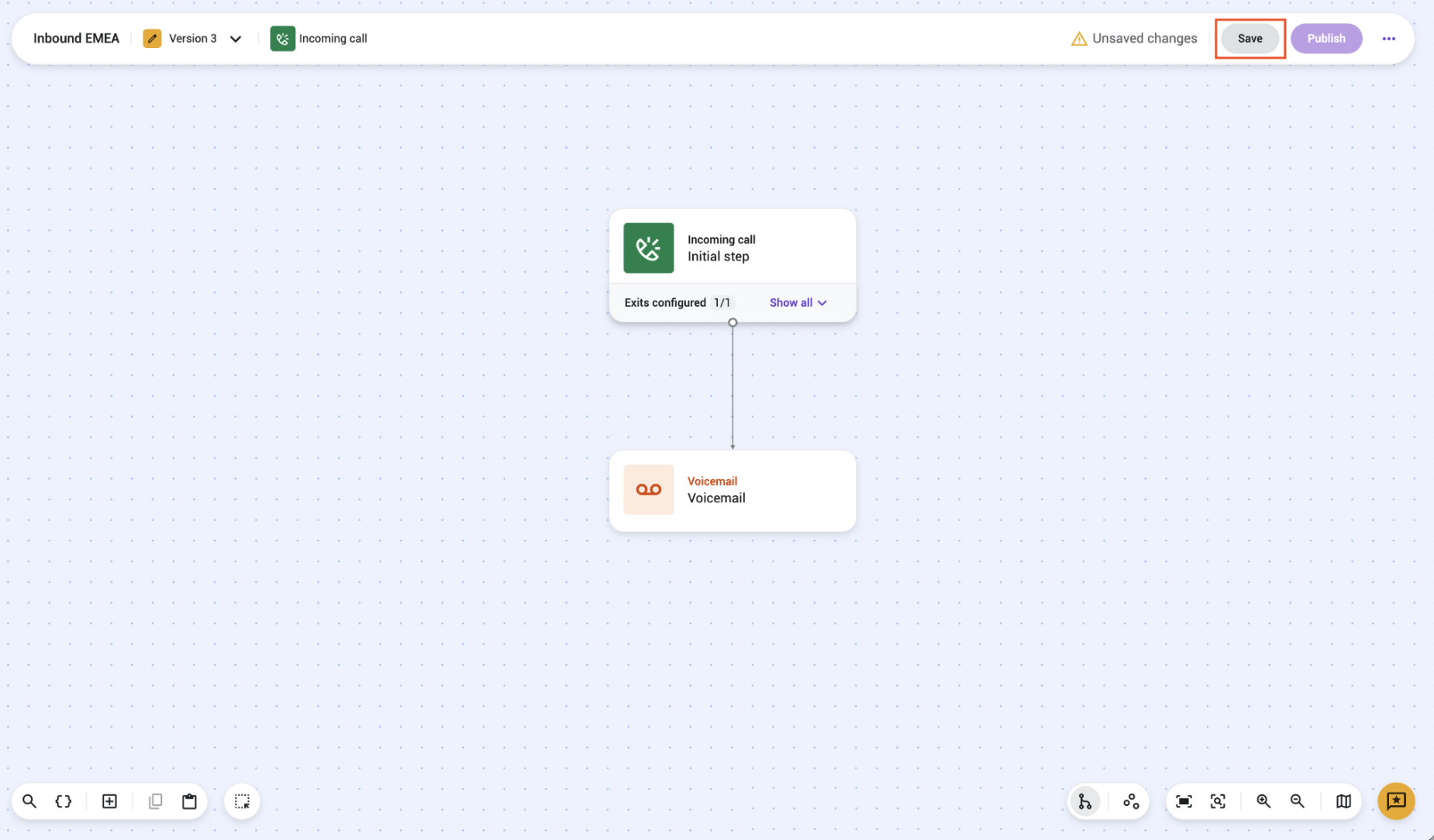

A flow is "Not Validated" if you have made changes to it but you haven't saved it yet.

You can save your draft by clicking the Save button. Clicking Save triggers an automatic error verification. If there are errors, you need to fix them before being able to eventually publish the flow. When there are no errors, the version is validated and can be published at any time.

Discarding a draft

14921492

If, at any moment, you need to discard a version of a flow, click on “More Options” [...] in the top-right corner of the Studio Editor and then hit Discard version. This action is particularly relevant because it is only possible to have one draft per flow.

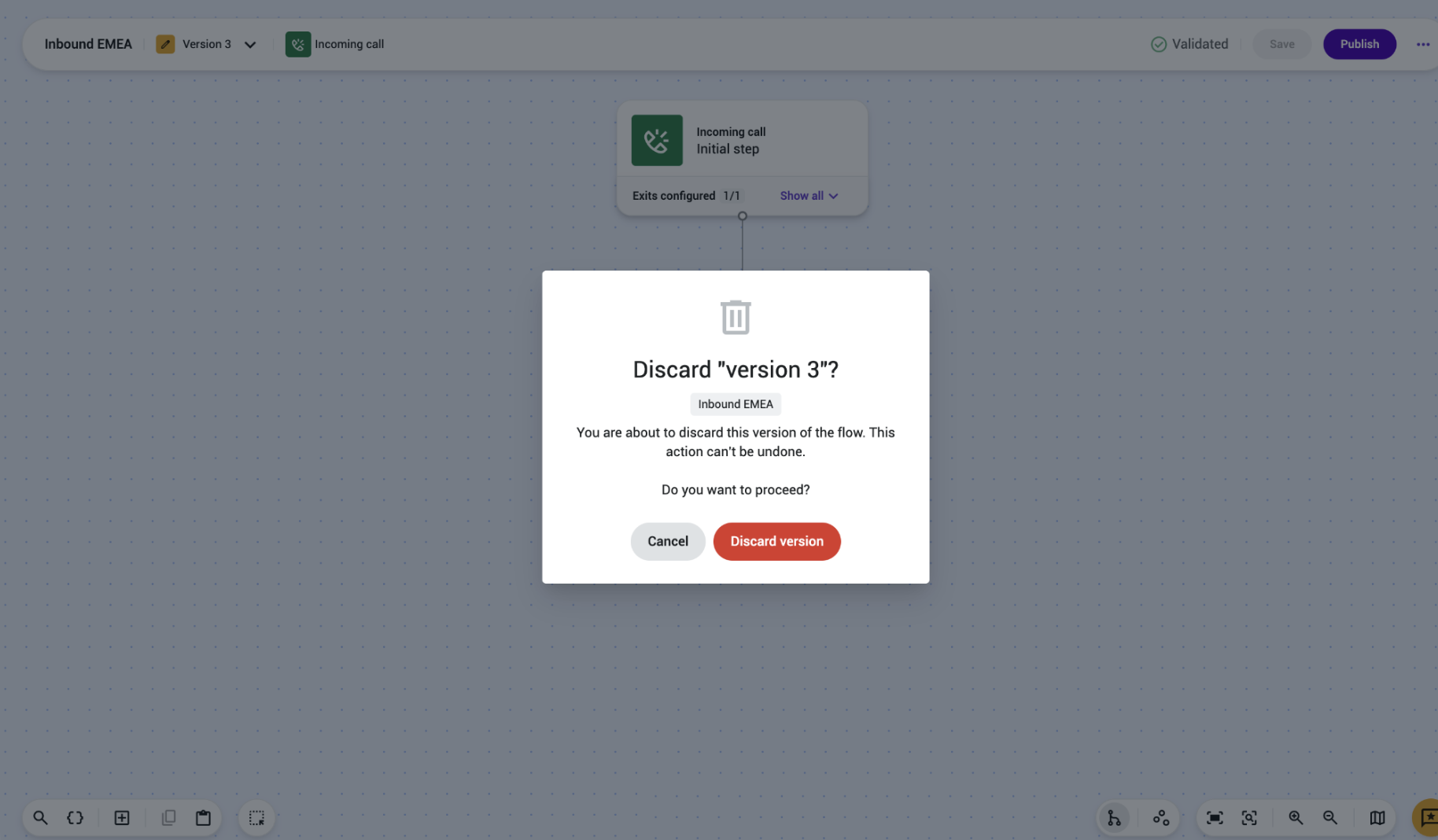

15011501

Confirm your action when the modal window appears, by clicking Discard version.

Published

Publishing a flow

14951495

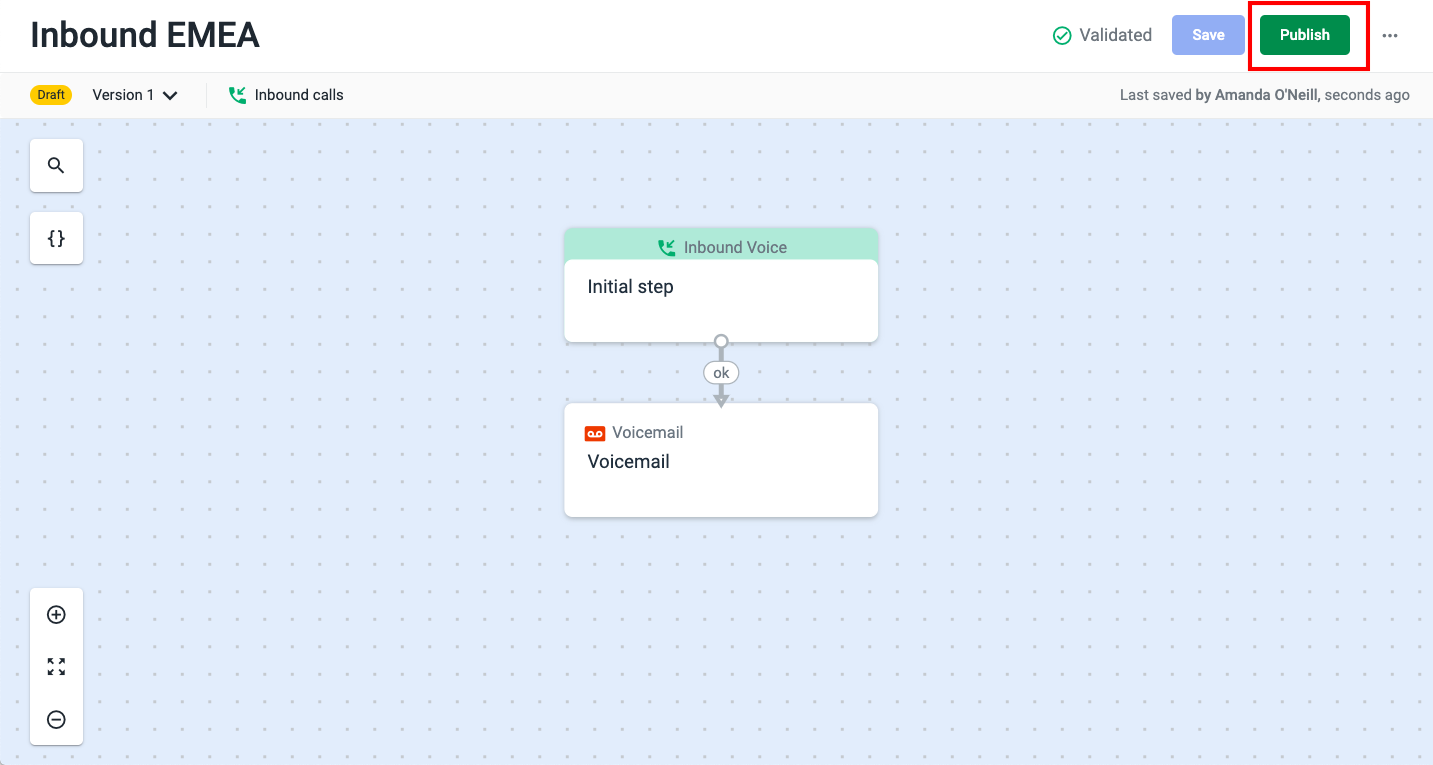

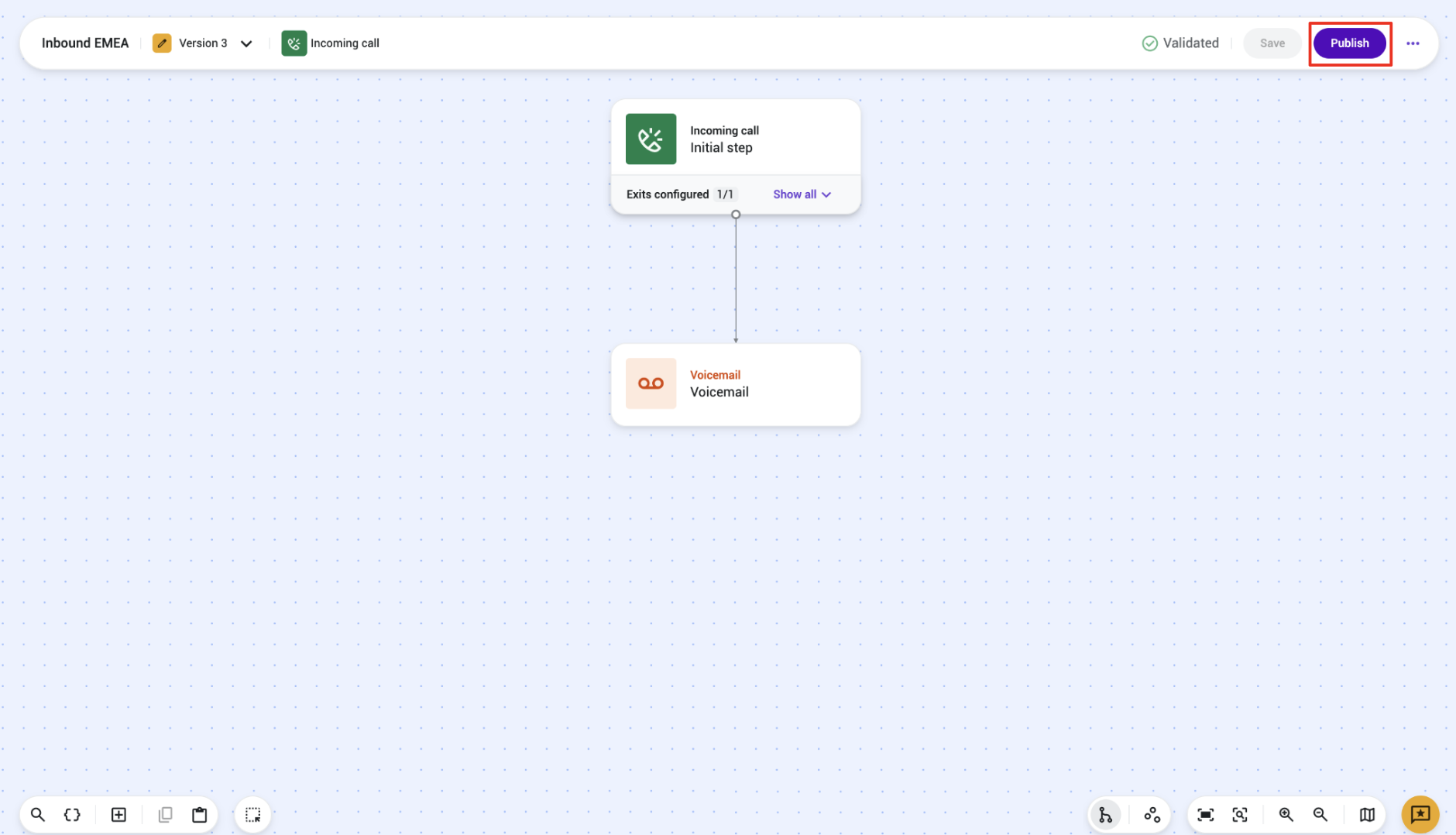

When you have finished configuring your flow, you must publish it to be able to assign it to one or more phone numbers. Calls made to these phone numbers will then follow the routing rules you have set up in your flow.

To have your flow published:

From that moment on, you can assign your flow to numbers.

Editing a published flow

14971497

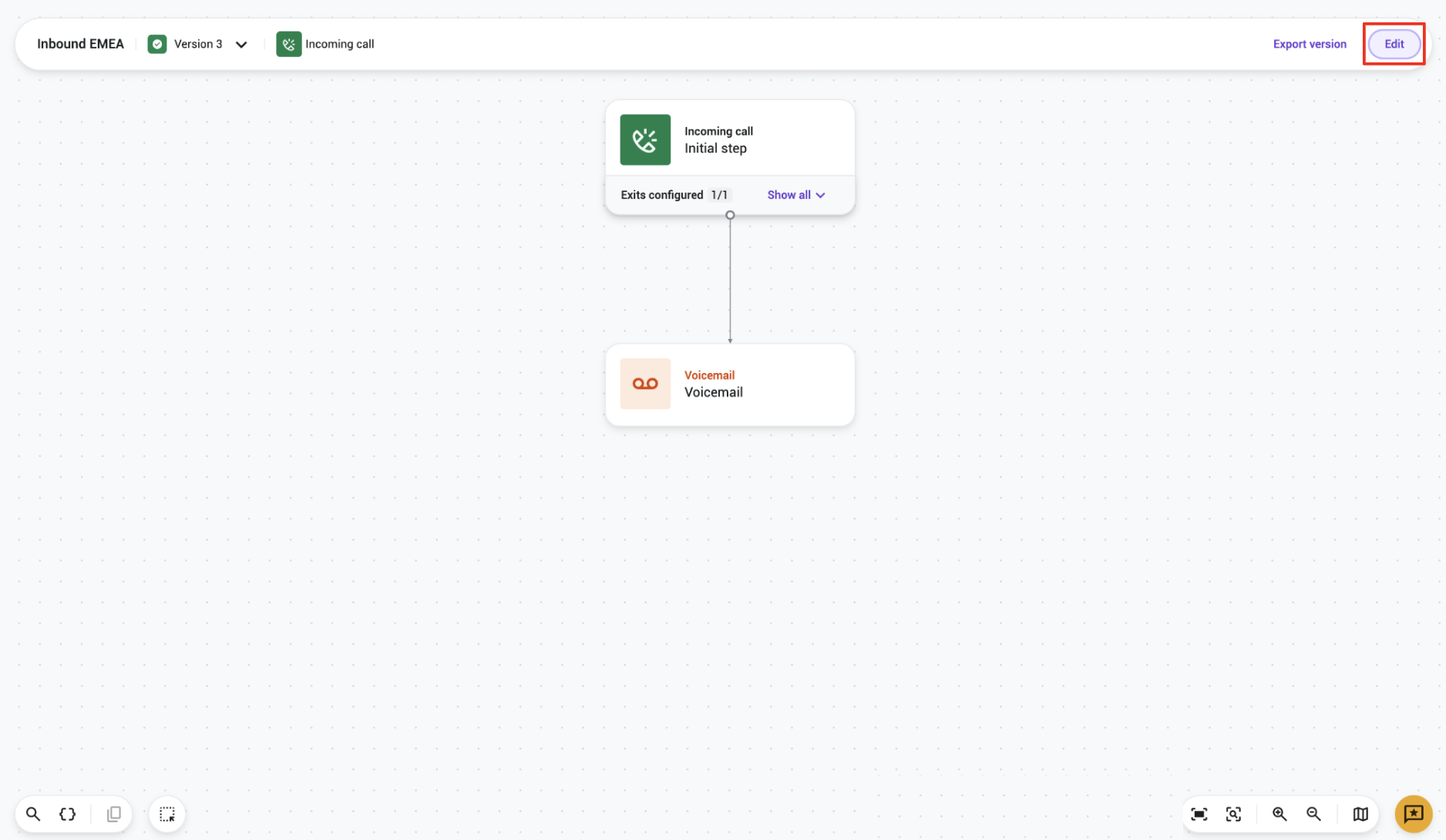

Clicking Edit within a published flow will create a copy with a "draft" status.

621621

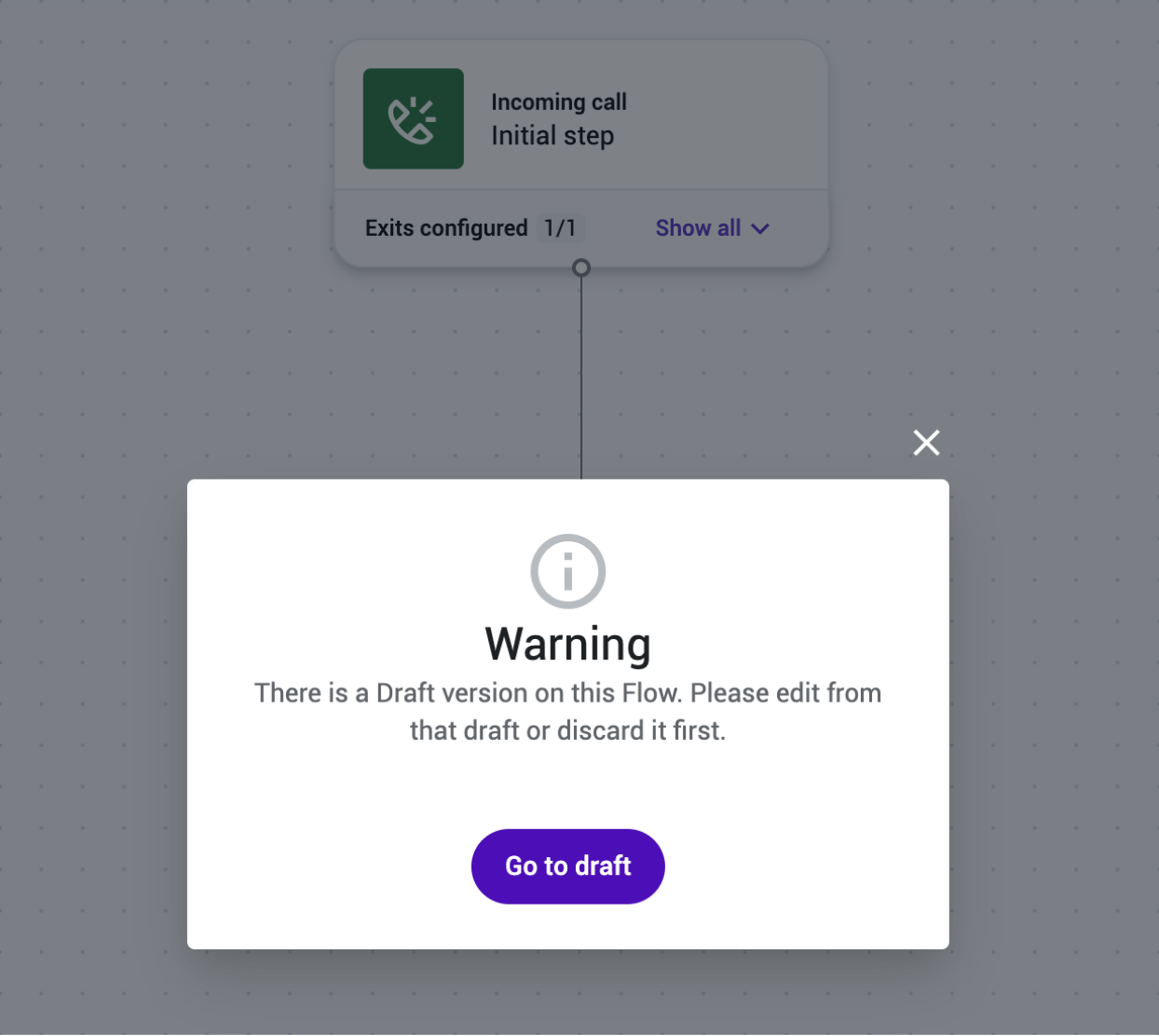

In case the published flow already has a draft version, a warning message will be displayed to inform of the existing draft version. It will also enable you to navigate to the draft by clicking on the Go to draft button.

15031503

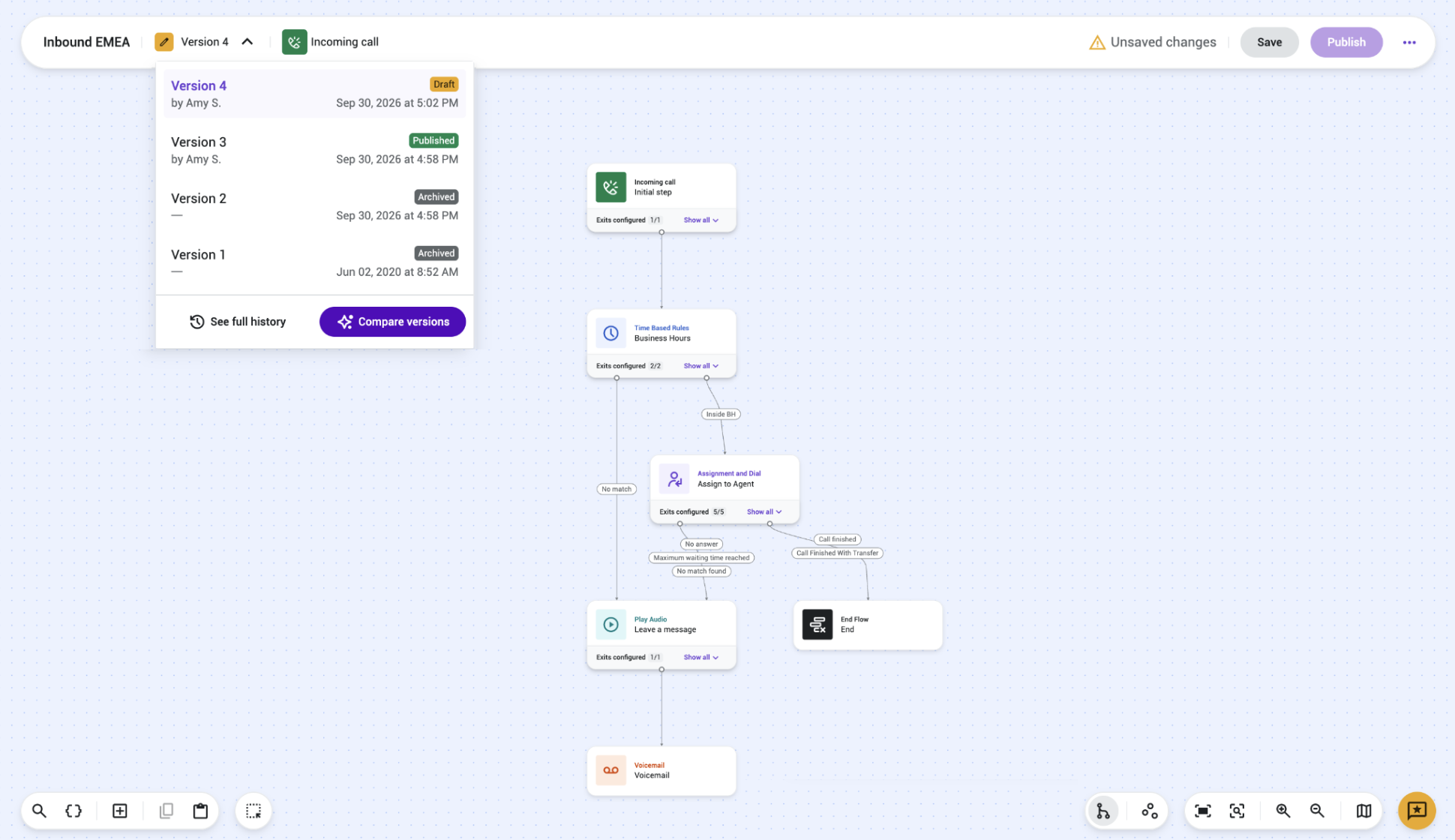

In both cases, you can work on the new draft version while the previous version remains published.

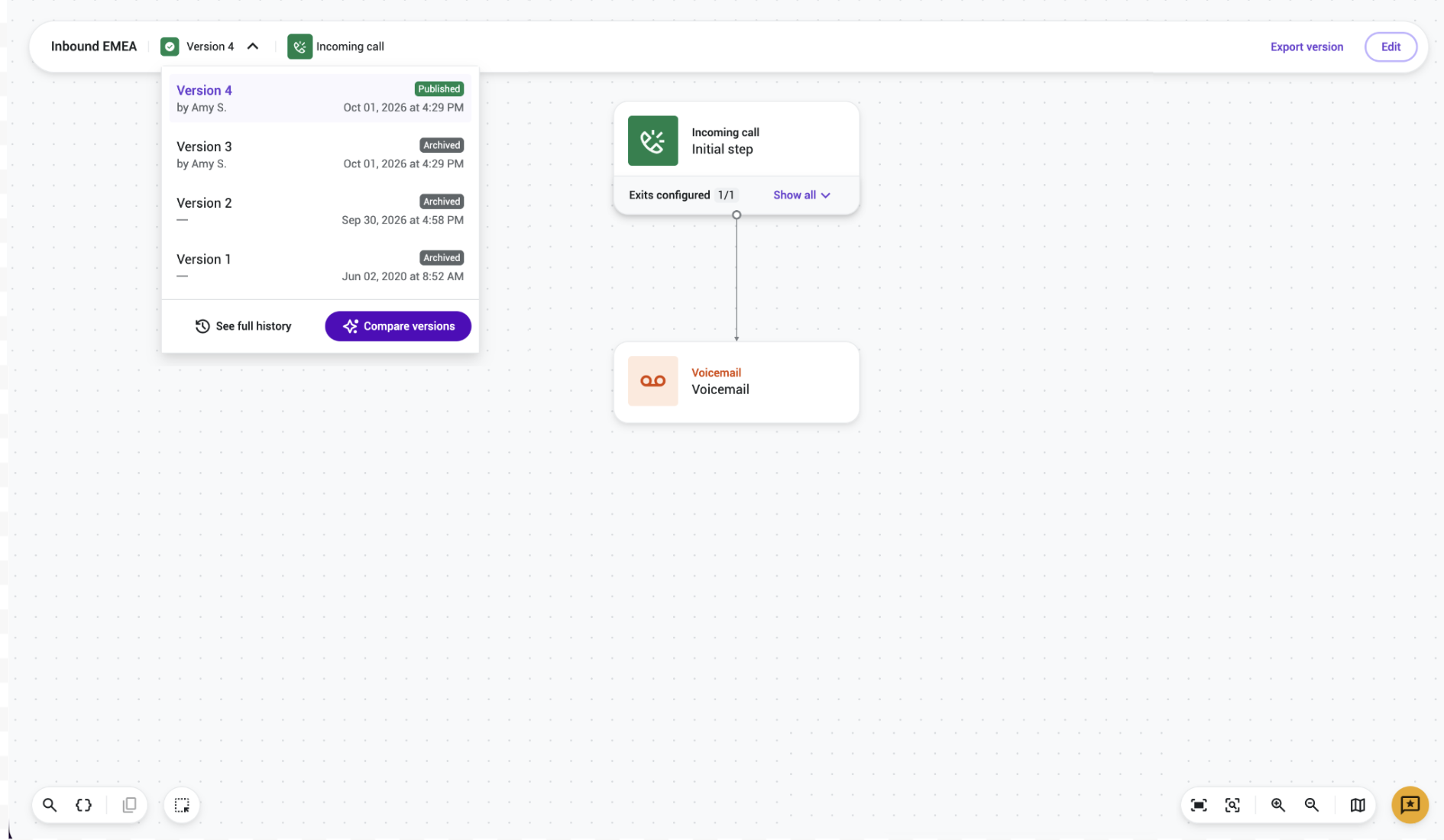

15021502

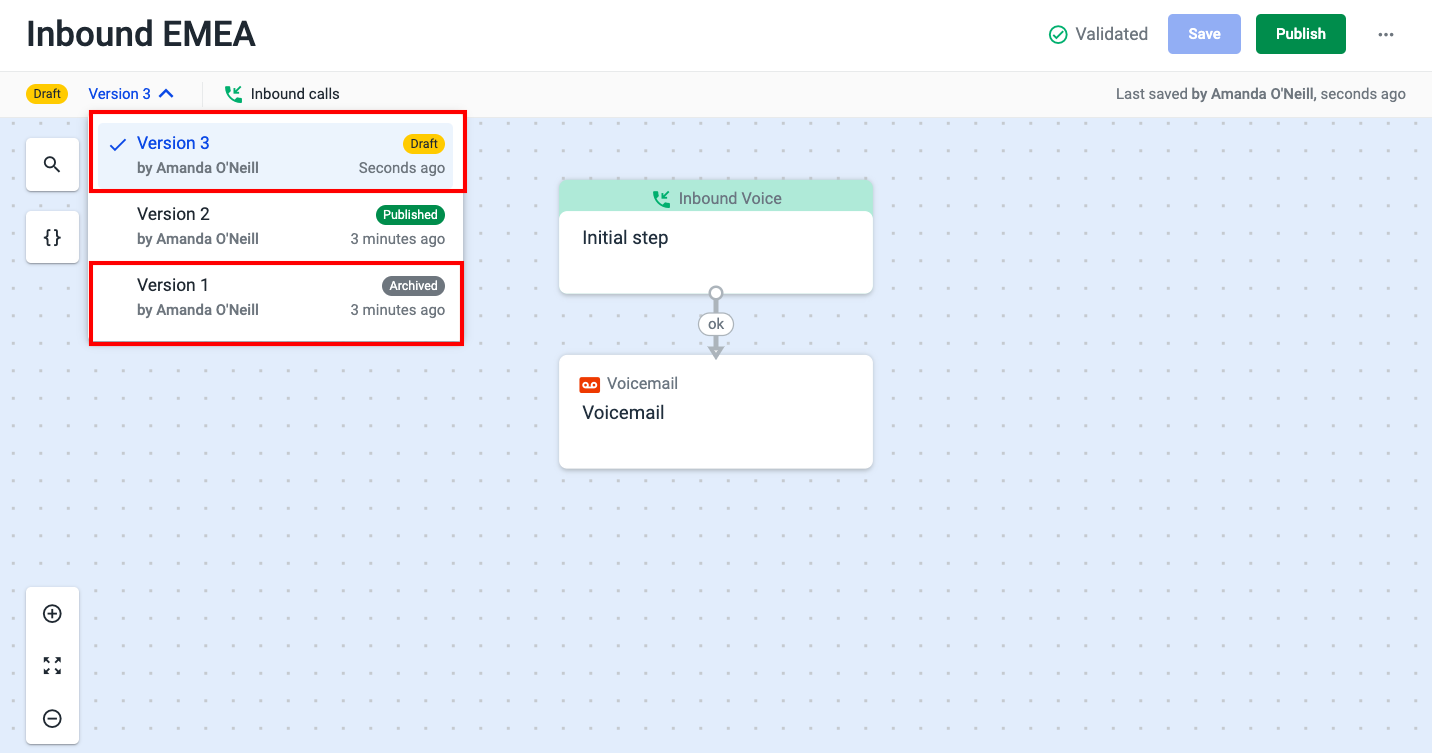

Since there can be only one published version per flow, if you publish this new draft, the previous version will be archived automatically.

Archived

A published version of a flow is archived automatically when you create a new draft version and publish it.

Restoring an archived version of a flow

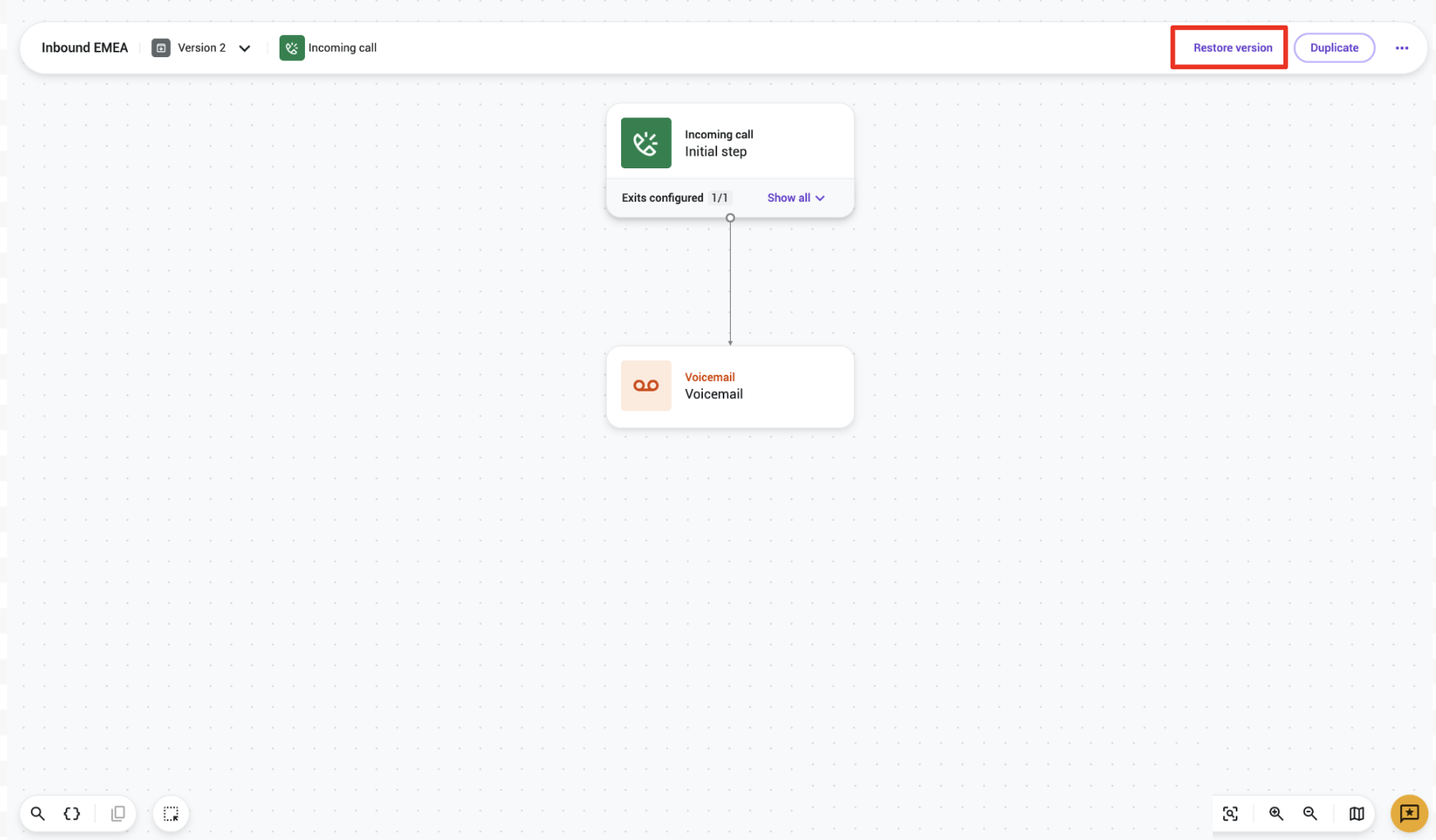

14911491

You can restore an archived version by clicking on the Restore version button.

Similar to what happens when a flow is edited, if you click on Restore version and a draft version of the flow already exists, a warning message will inform you of this existing draft version. You can navigate to it by clicking on Go to draft.

In case a pre-existing draft version is not available, a copy of the archived version will be created as a new draft.

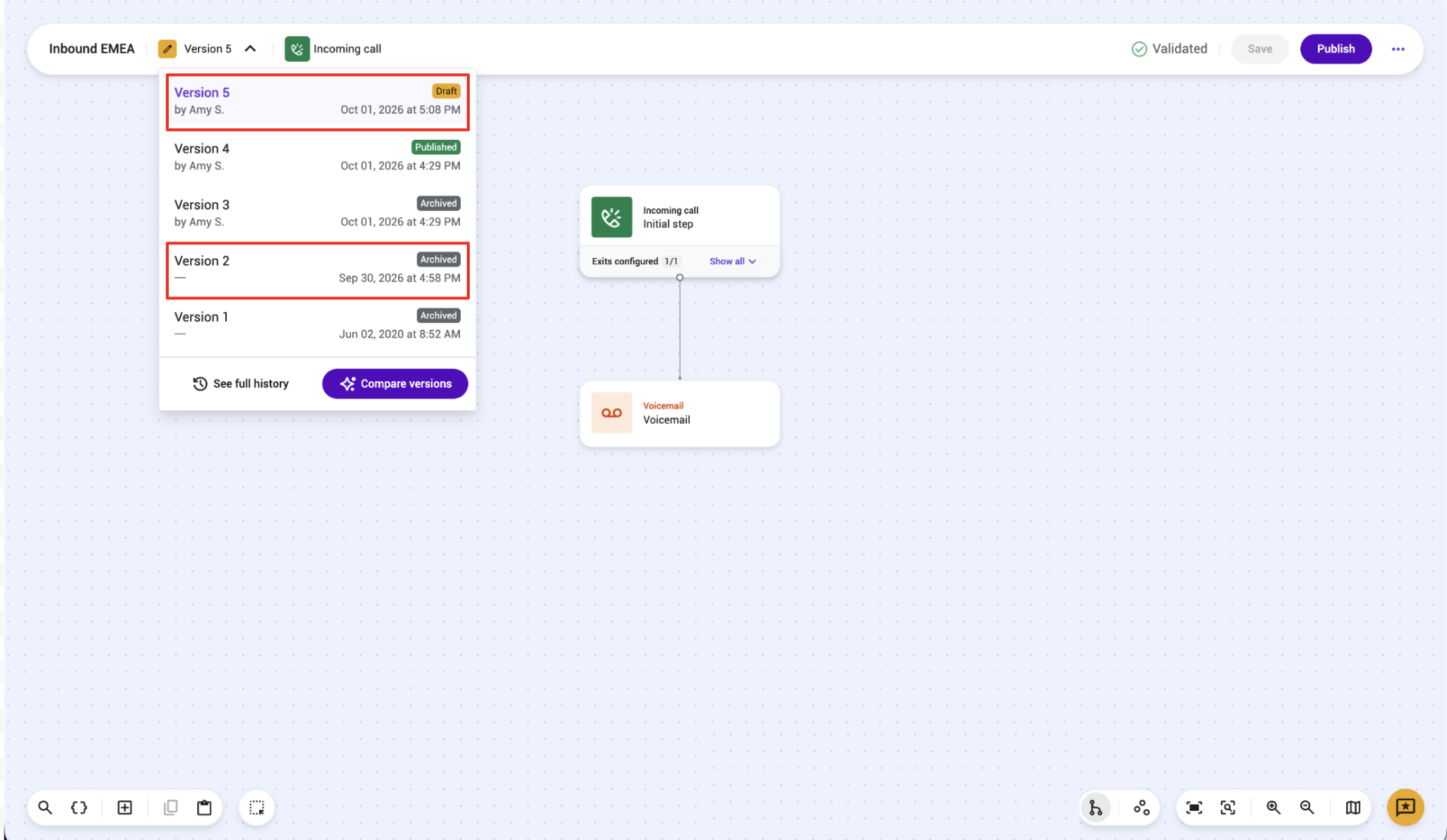

15051505

In both cases, you can work on the draft freely while the archived version remains archived.

Duplicating an archived version to a new flow

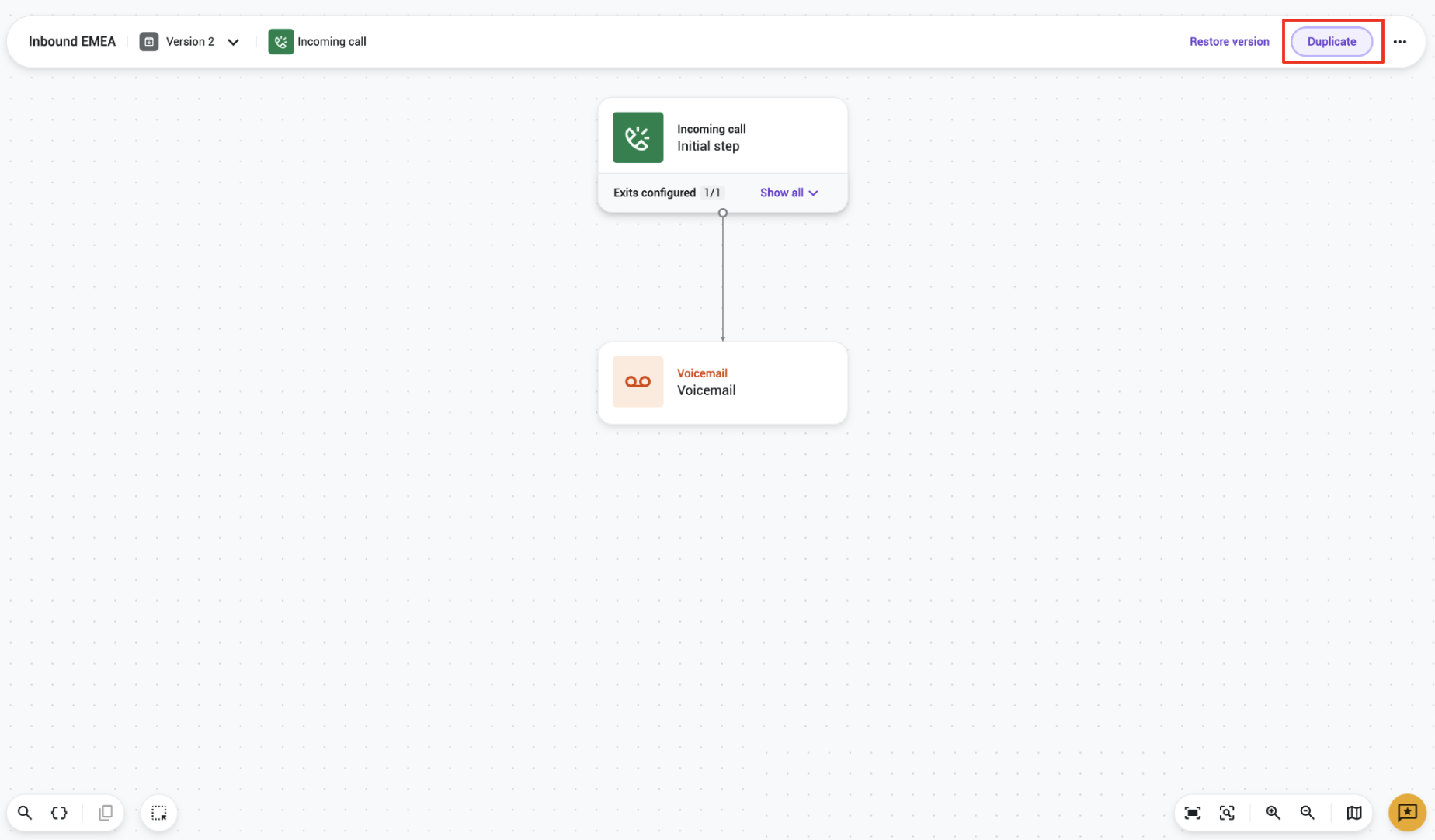

15031503

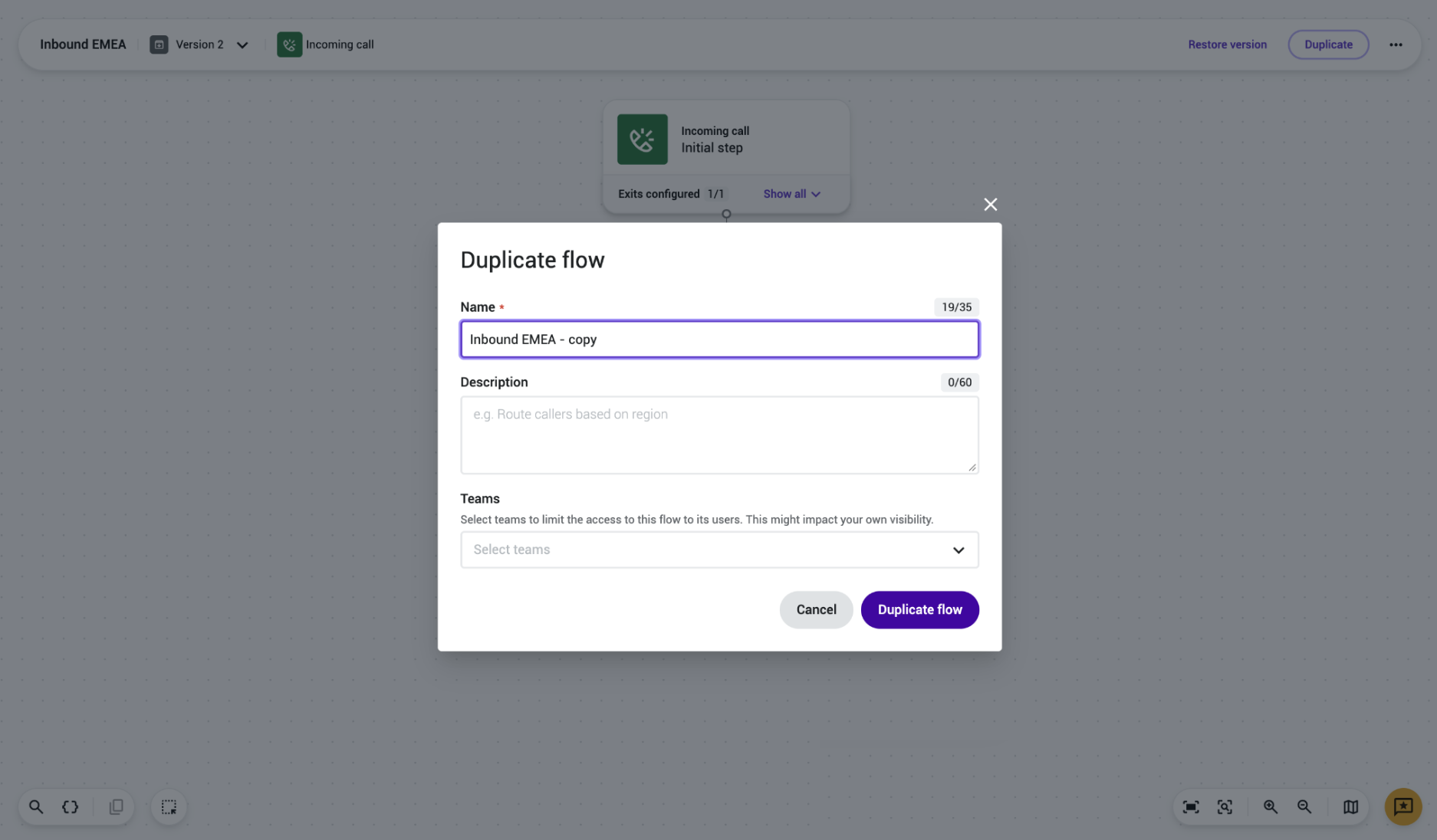

You can duplicate an archived version of a flow by clicking the Duplicate button in the top-right corner of the Studio Editor.

14331433

A new flow will be created (not a new version) when you fill in the “Name”, and if necessary, the “Description” and hit Create Flow.
